Bollard Specifications

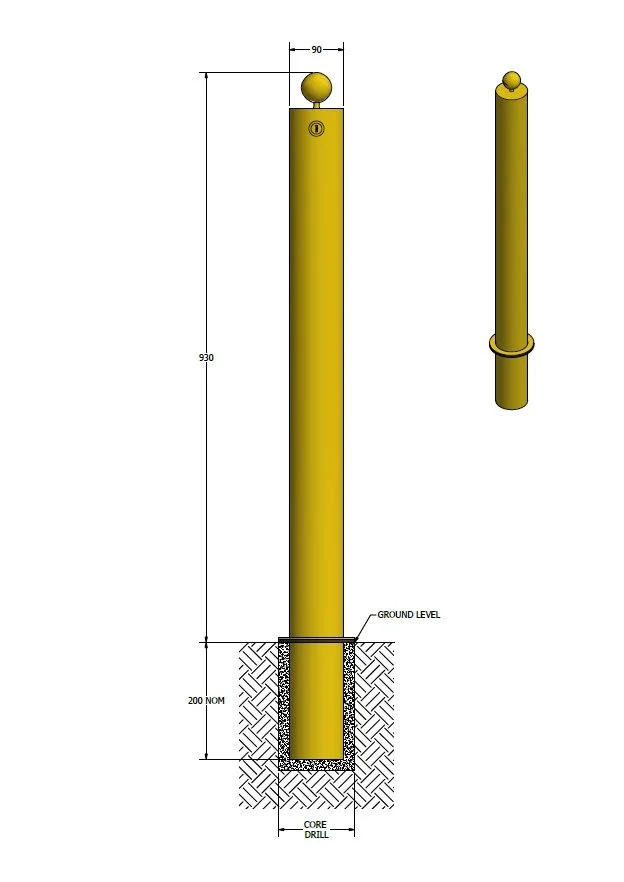

BD90STD

90mm Diameter – 4mm Wall
930mm Height
Weight: 9.8 kgs

The BD90STD is designed for RESIDENTIAL USE to protect Garages, Driveways, Carports, and similar areas.

  • Double locking cam system with internal mechanism.

  • Galvanised steel tube.

  • Stainless steel internal components to prevent corrosion to all locking and moving parts.

  • Can be keyed alike.

  • Standard colours are Yellow or Black.

  • Round handle which is gentle on the hands.

  • 2 keys supplied per bollard.

    Options

  • Bollard Sleeve, Cap & Storage Holder are available as Spare Parts

  • Can powder coat special colours.

  • Can weld on attachments.

  • Can custom manufacture to your requirements.

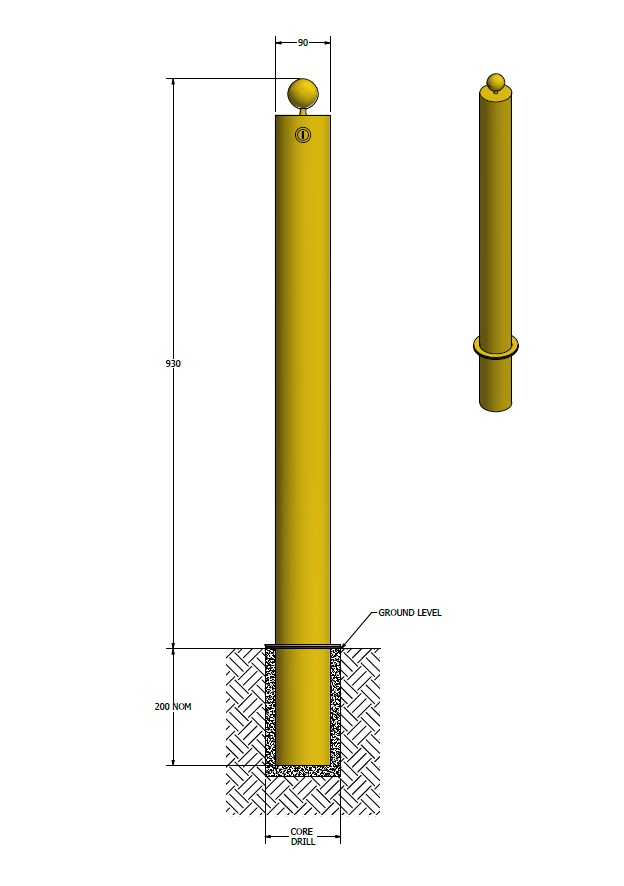

BD90HD

90mm Diameter – 8mm Wall
930mm Height
Weight: 15.4 kgs

The BD90HD is designed for RESIDENTIAL USE
to protect Garages, Driveways, Carports and similar areas.

  • Double locking cam system with internal mechanism.

  • Galvanised steel tube.

  • Stainless steel internal components to prevent corrosion to all locking and moving parts.

  • Can be keyed alike.

  • Standard colours are Yellow or Black.

  • Round handle which is gentle on the hands.

  • 2 keys supplied per bollard.

    Options

  • Bollard Sleeve, Cap & Storage Holder are available as Spare Parts

  • Can powder coat special colours.

  • Can weld on attachments.

  • Can custom manufacture to your requirements.

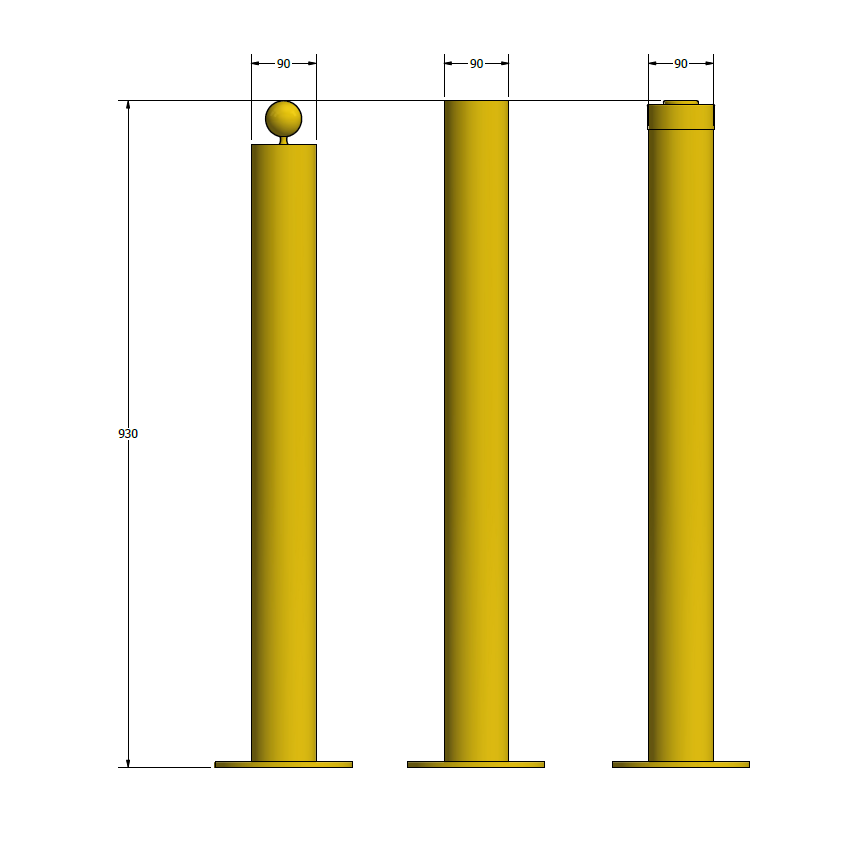

BD90SM

90mm Diameter – 4 mm Wall
930mm Height
Weight: 10 kgs

The BD90SM is designed for RESIDENTIAL / COMMERCIAL USE  to protect Garages, Workshops, Driveways, Shop Fronts, Carports and similar areas to prevent ramming.

  • Surface Mount

  • 8mm x 190mm Diameter Base Plate

  • 4 Fixing Points

  • Standard powder coat colours are Yellow or Black

    Options:

  • Ball Top, Flat Top or Cap Top

  • Can powder coat special colours

  • Reflective Tape

  • Can weld on attachments

  • Can custom manufacture to your requirements

BD114SM

114mm Diameter – 4 mm Wall
1200mm Height
Weight: 16 kgs

The BD114SM is designed for RESIDENTIAL / COMMERCIAL USE  to protect Garages, Workshops, Driveways, Shop Fronts, Carports and similar areas to prevent ramming.

  • Surface Mount

  • 8mm x 225mm Diameter Base Plate

  • 4 Fixing Points

  • Standard powder coat colours are Yellow or Black

    Options:

  • Cap Top or Flat Top

  • Can powder coat special colours

  • Reflective Tape

  • Can weld on attachments

  • Can custom manufacture to your requirements

BD165SM

165mm Diameter – 5 mm Wall
1320mm Height
Weight: 31 kgs

The BD165SM is designed for RESIDENTIAL / COMMERCIAL / INDUSTRIAL USE to protect Garages, Workshops, Driveways, Shop Fronts, Carports and similar areas to prevent ramming.

  • Surface Mount

  • 10mm x 300mm Base Plate

  • 4 Fixing Points

  • Standard powder coat colours are Yellow or Black

    Options:

  • Flat Top or Cap Top

  • Can powder coat special colours

  • Reflective Tape

  • Can weld on attachments

  • Can custom manufacture to your requirements

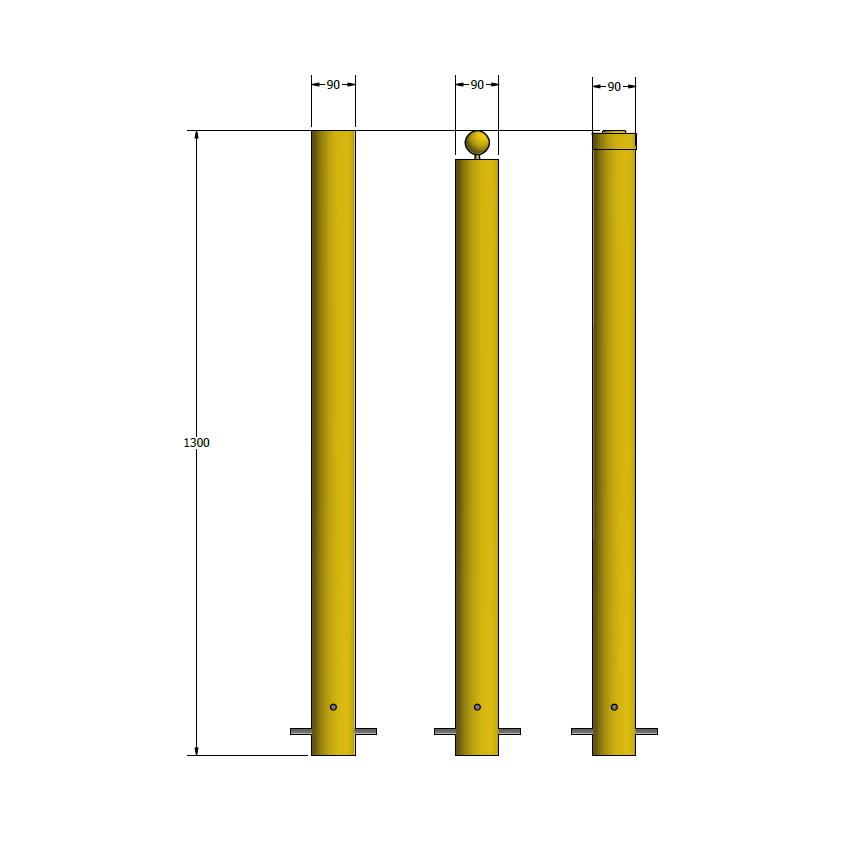

BD90IG

90mm Diameter – 4 mm Wall
1300mm Height
Weight: 9 kgs

The BD90IG is designed for all applications requiring a permanent, aesthetically pleasing protective barrier.

  • Fixed Inground

  • Standard powder coat colours are Yellow or Black

    Options:

  • Flat Top, Ball Top or Cap Top

  • 4 x 12mm x 50mm Reo Supports

  • Length Variance

  • Can powder coat special colours

  • Can weld on attachments

BD114IG

114mm Diameter – 4 mm Wall
1300mm Height
Weight: 15 kgs

The BD114IG is designed for all applications requiring a permanent, aesthetically pleasing protective barrier.

  • Fixed Inground

  • Standard powder coat colours are Yellow or Black

    Options:

  • Flat Top or Cap Top

  • 4 x 12mm x 50mm Reo Supports

  • Length Variance

  • Can powder coat special colours

  • Can weld on attachments

BD165IG

165mm Diameter – 5 mm Wall
1600mm Height
Weight: 32 kgs

The BD140IG is designed for COMMERCIAL / INDUSTRIAL USE to protect Garages, Workshops, Driveways, Door & Entrance Ways and similar areas to prevent ramming.

  • Fixed Inground

  • Standard powder coat colours are Yellow or Black

    Options:

  • Flat Top or Cap Top

  • 4 x 16mm x 50mm Reo Supports

  • Length Variance

  • Can powder coat special colours

  • Can weld on attachments
